The Activity panel

Introduction

The Activity panel shows various aspects of the animal's activity and behaviour - for example, the animal's freezing or immobility bouts.

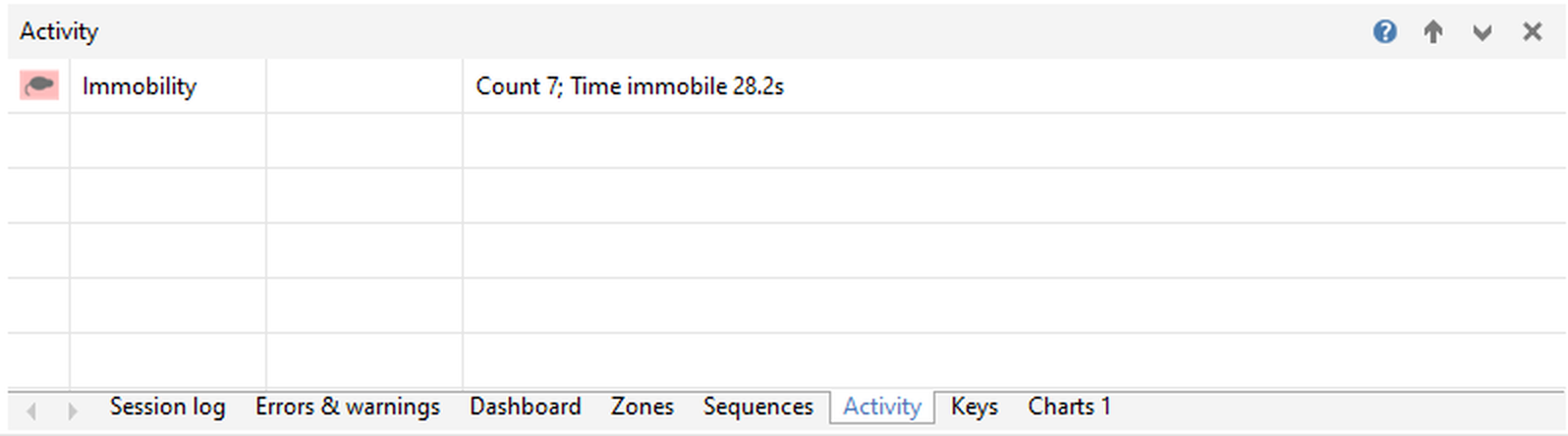

Figure 1. The Activity panel showing the animal's immobility bouts.

The activity panel contains information about any of the following which are set up in your protocol:

•

•

•

Rearing, if the apparatus is being viewed from the side

There are no buttons specific to this panel.

When this panel is the selected tab, the right-hand side of the tabbed section's title will contain controls relevant to the tabbed display:

Show Help - Displays help on this panel.

Promote panel - Promotes this panel to be the main panel of the Test window.

Collapse tabs - Collapses the tabbed section, to give more space to the promoted panel. The tabbed section can be reinstated by clicking on any tab.

Close panel - Closes this tab, removing it from the tabbed section. It can be re-added using the

Panel settings button on the ribbon bar, or the Test window panels section of the protocol.

The information in this panel will generally persist at the end of the test (depending on how you've set the Test window panel settings in the protocol). For more information, see Clearing test information ready for the next test.
